SML CNC Pipe Cutting and Beveling Machine
SML CNC Pipe Cutting and Beveling Machine

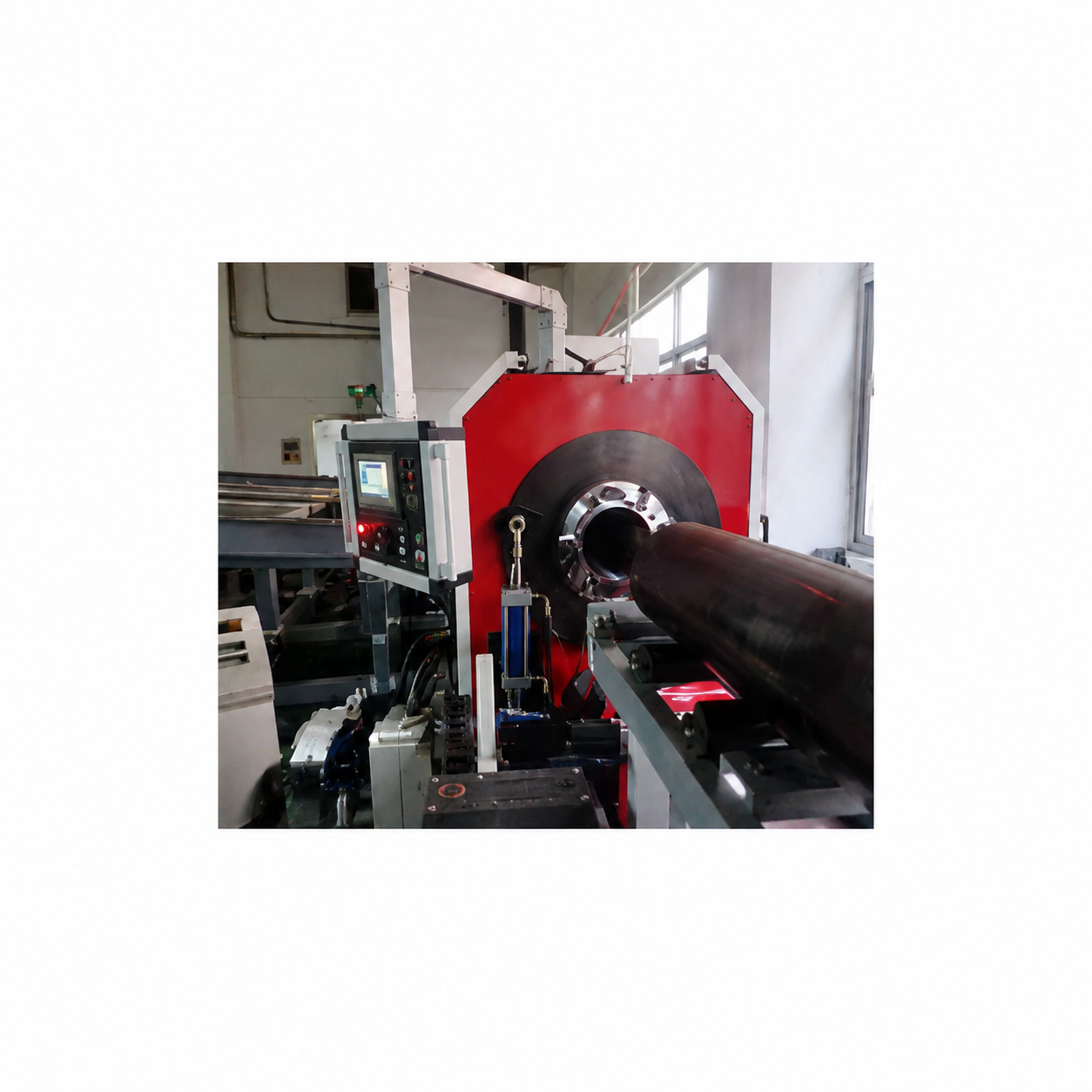

The SML CNC pipe cutting and beveling machine is a CNC-controlled pipe processing system designed for pipe prefabrication and industrial pipeline machining. It is mainly used for pipe cutting, pipe end beveling, synchronized cutting and beveling, and pipe end preparation before welding. With PLC numerical control, servo feeding and servo retraction, the machine improves machining control accuracy and is suitable for pipe prefabrication projects requiring high pipe end squareness, bevel consistency and batch processing efficiency.

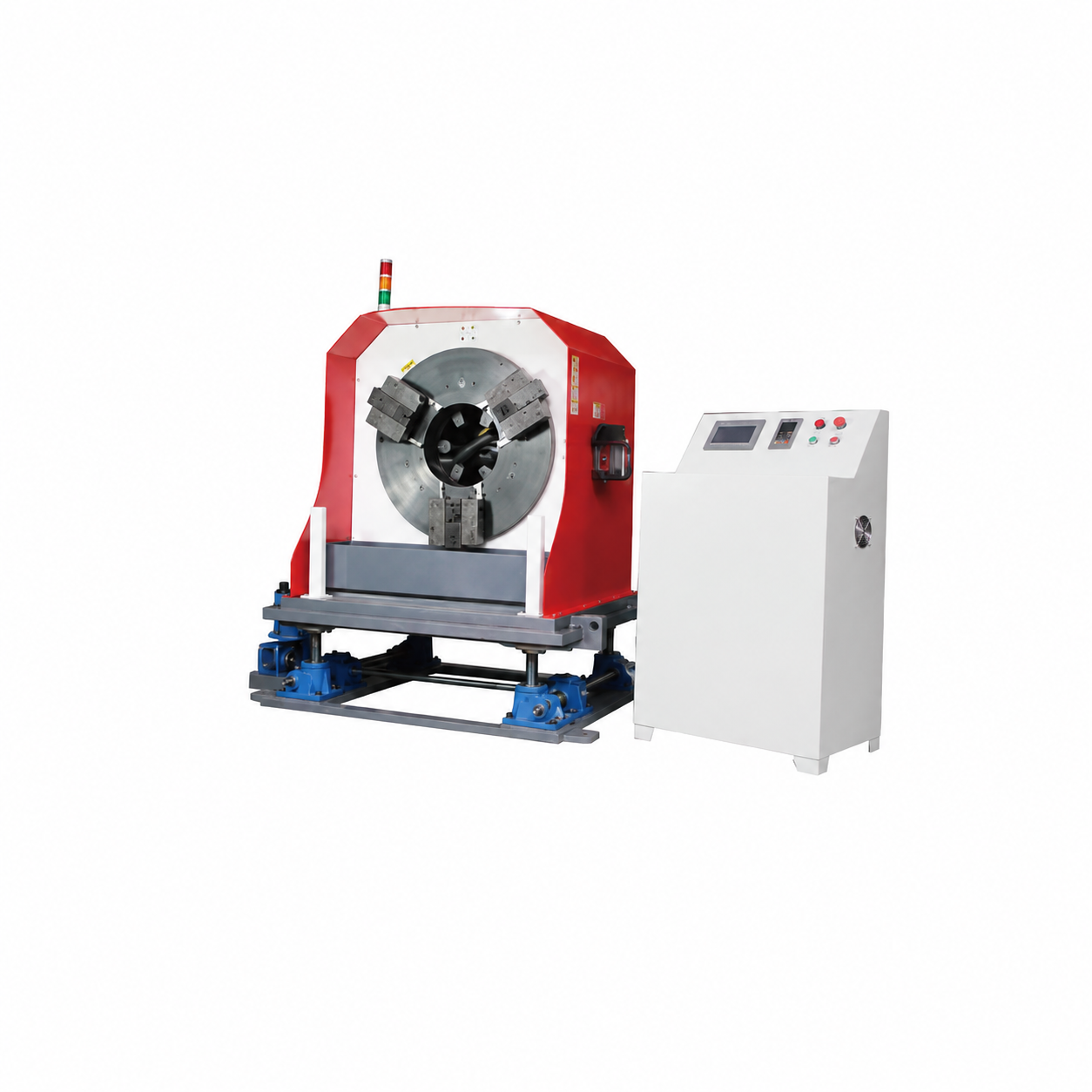

The machine is equipped with automatic multi-jaw clamping, hydraulic clamping, 4-axis synchronized lifting, circulating water cooling, spindle variable-speed control, automatic lubrication, LED lighting, laser-assisted tool alignment and machine running indicator. After one clamping, it can complete cutting, cutting with single-side beveling, cutting with double-side beveling and cutting with compound beveling. Compared with manual cutting and grinding, the SML CNC pipe cutting and beveling machine helps reduce secondary finishing time, improve cutting stability and enhance welding preparation quality.
The SML series includes SML-168, SML-325, SML-426, SML-630, SML-762 and WML-914, covering a pipe processing range from 30mm to 914mm. It is suitable for carbon steel, stainless steel and other pipe materials, and is widely used in petrochemical, natural gas, power construction, boiler, pressure vessel, shipbuilding, water treatment, steel structure pipeline and industrial installation projects. For users building pipe prefabrication centers or improving batch processing efficiency, the SML series is a more automated and higher-precision cutting and beveling solution.
Suitable for workshop pipe prefabrication, batch cutting, synchronized beveling and welding preparation. PLC numerical control system provides more stable feeding, retraction and machining control. Servo feeding and servo retraction are suitable for higher-precision pipe processing requirements. Supports cutting, cutting with beveling, cutting with double-side beveling and cutting with compound beveling. Supports V-type, I-type and double V-type bevel forms for different welding procedures. Automatic multi-jaw clamping and hydraulic clamping improve pipe holding stability. Spindle variable-speed control allows adjustment according to pipe diameter, material and wall thickness. Equipped with circulating water cooling, automatic lubrication, LED lighting and laser-assisted tool alignment. Suitable for carbon steel, stainless steel and other industrial pipe materials. Used in petrochemical pipelines, natural gas lines, power pipelines, boiler pipes, pressure vessels, shipbuilding pipes and pipe prefabrication centers.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | SML CNC Pipe Cutting and Beveling Machine |
| Product Category | CNC pipe cutting machine / CNC pipe cutting and beveling machine / integrated pipe cutting and beveling equipment / pipe prefabrication equipment |
| Workpiece Type | Industrial pipelines, pressure pipelines, petrochemical pipelines, natural gas pipelines, boiler pipes, shipbuilding pipes and workshop prefabricated pipe sections |
| Control Method | PLC numerical control |
| Processing Method | Pipe cutting, cutting with beveling, cutting with compound beveling, single-side beveling, double-side beveling |
| Bevel Forms | V-type / I-type / double V-type |
| Clamping Method | Automatic multi-jaw clamping / hydraulic single-side or double-side clamping |
| Lifting Method | 4-axis synchronized lifting |
| Feed Mode | Servo feeding |
| Retraction Mode | Servo retraction |
| Cooling Method | Circulating water cooling |
| Spindle Control | Spindle variable-speed control |
| Auxiliary Systems | Automatic lubrication system, LED lighting system, laser-assisted tool alignment system, machine running indicator |
| Safety Structure | Left and right split safety doors |
| Chip Handling | Large-capacity chip collection trough |
| Processing Capability | One machine can complete single-side or double-side pipe cutting and beveling |
| Number of Tools in Simultaneous Processing | 1 / 2 / 3 |
| Hydraulic System Power | 2.2KW |
| Servo Motor Power | 0.75KW |
| Water Pump Power | 750W |
| Feed Amount | 0–0.2mm/rev |
| Lighting | RED lighting |
| Processing Wall Thickness | Carbon steel ≤20mm; stainless steel ≤15mm |
| SML-168 | Cutting range 30–168mm; main motor power 5.5KW; cutter speed 0–40r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; servo feeding; servo retraction |
| SML-325 | Cutting range 80–325mm; main motor power 7.5KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; servo feeding; servo retraction |
| SML-426 | Cutting range 126–426mm; main motor power 11KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; servo feeding; servo retraction |
| SML-630 | Cutting range 325–630mm; main motor power 15KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; servo feeding; servo retraction |
| SML-762 | Cutting range 457–762mm; main motor power 22KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; servo feeding; servo retraction |
| WML-914 | Cutting range 762–914mm; main motor power 32KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; servo feeding; servo retraction |
| Available Processes | Cutting, cutting + beveling, cutting + double-side beveling, cutting + compound beveling, single-side beveling, double-side beveling |
| Typical Applications | Pipe prefabrication, pipe cutting, welding bevel preparation, petrochemical pipe processing, shipbuilding pipe processing and pressure pipe processing |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications

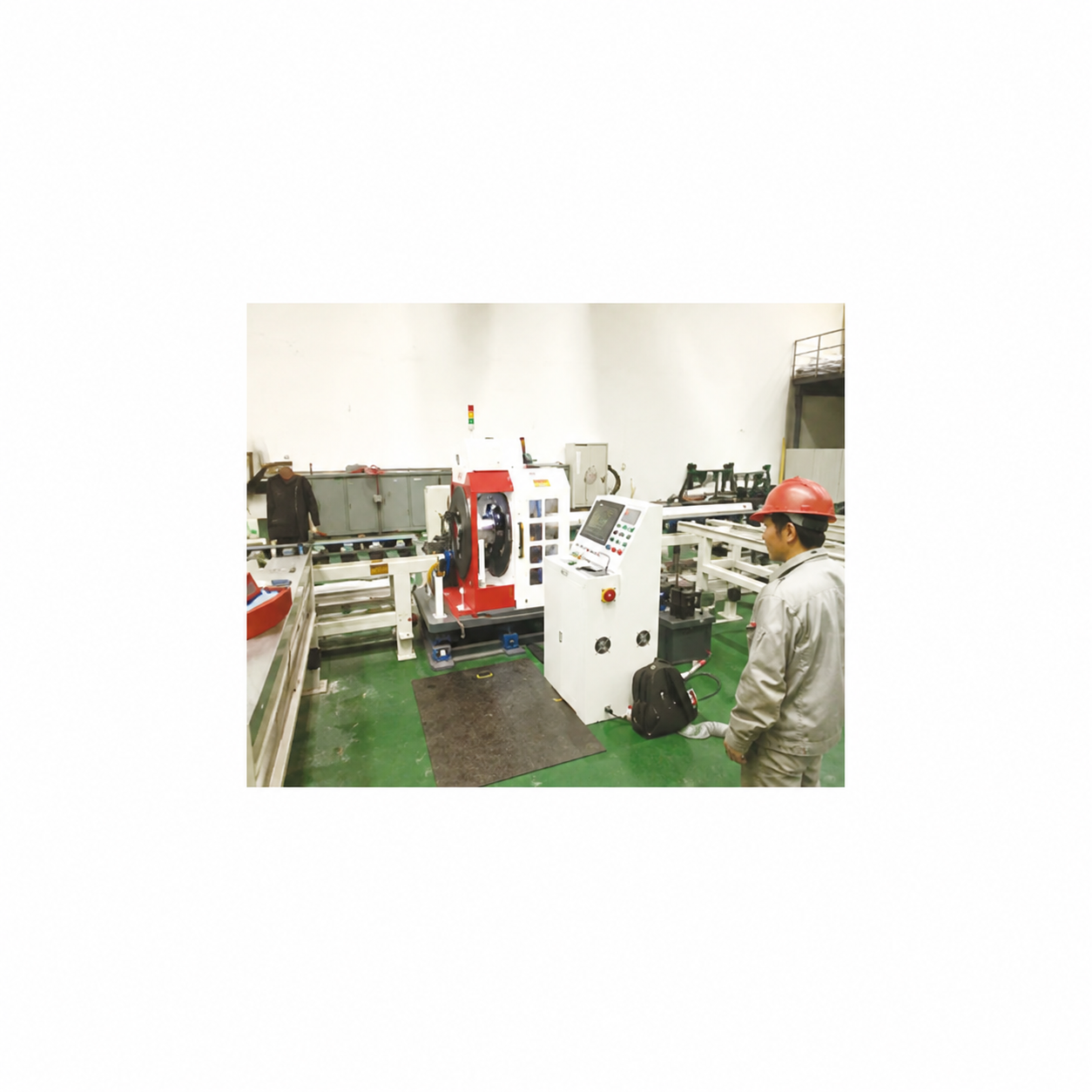

High-precision cutting and beveling in petrochemical pipe prefabrication.
Batch prefabrication and welding preparation for natural gas, power and boiler pipelines.
Pipe section processing for pressure vessels, shipbuilding and water treatment projects.

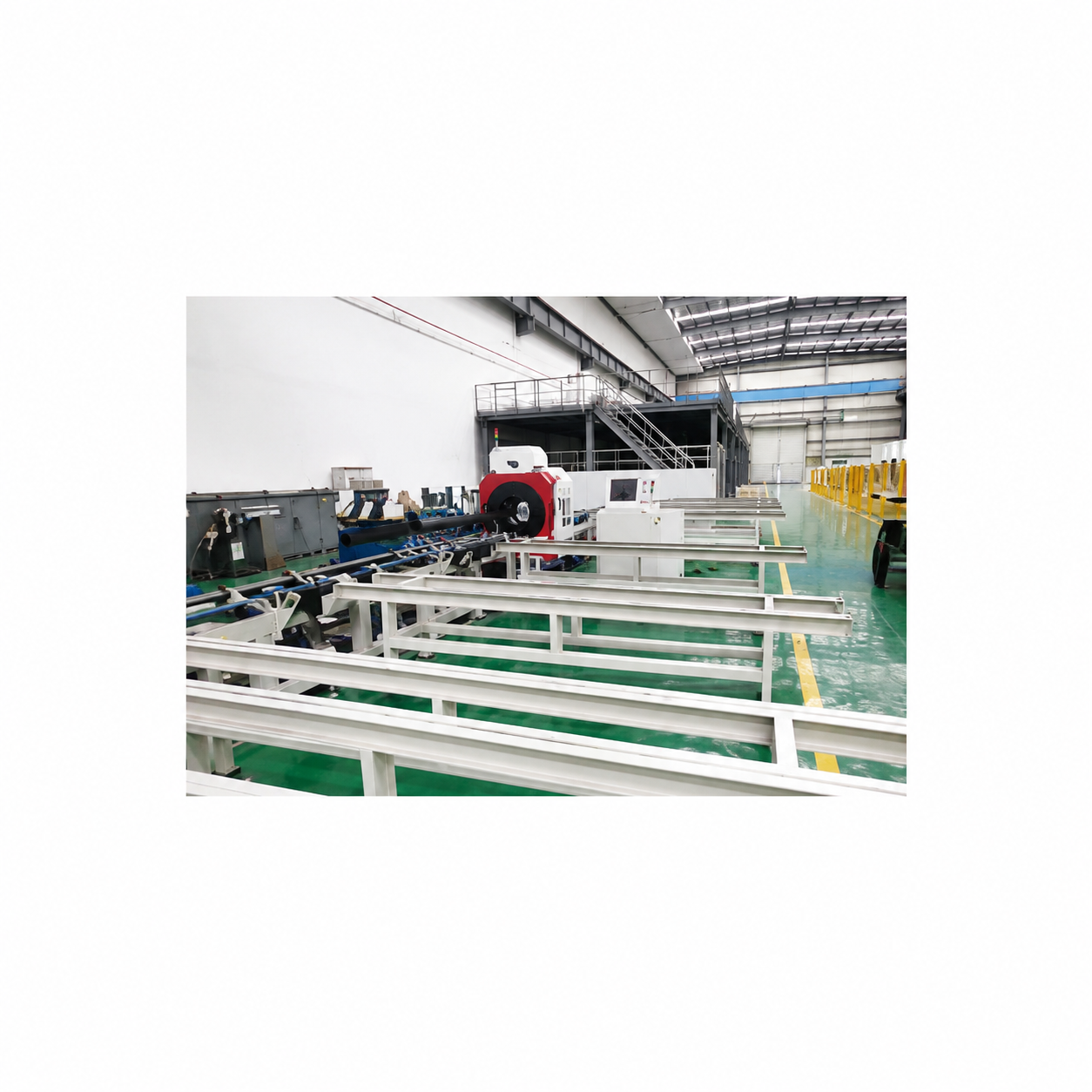

Automated cutting and beveling operations in large pipe prefabrication centers.
Replacing manual cutting and grinding to improve pipe end consistency, bevel stability and welding preparation efficiency.
