CG2 Series Pipe Gas Cutting Machine
CG2 Series Pipe Gas Cutting Machine
The CG2 series pipe gas cutting machine is a flame cutting machine for pipe circumferential cutting and pipe end beveling. It is mainly used for on-site cutting of steel pipes, metal pipelines and industrial pipe systems. Compared with manual torch cutting, the machine can move steadily along the outside circumference of the pipe, helping improve pipe end cutting uniformity, cutting quality and welding preparation efficiency.

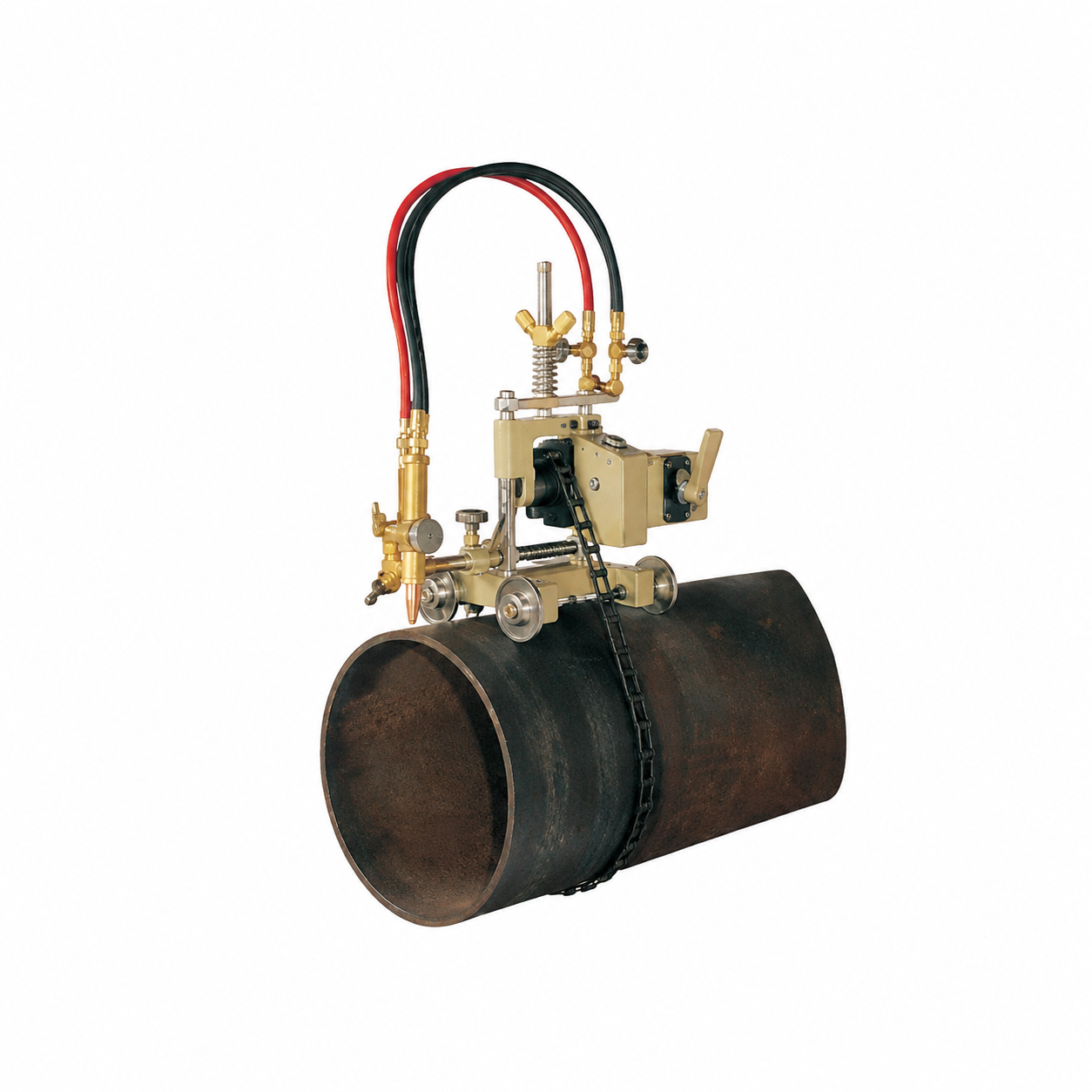

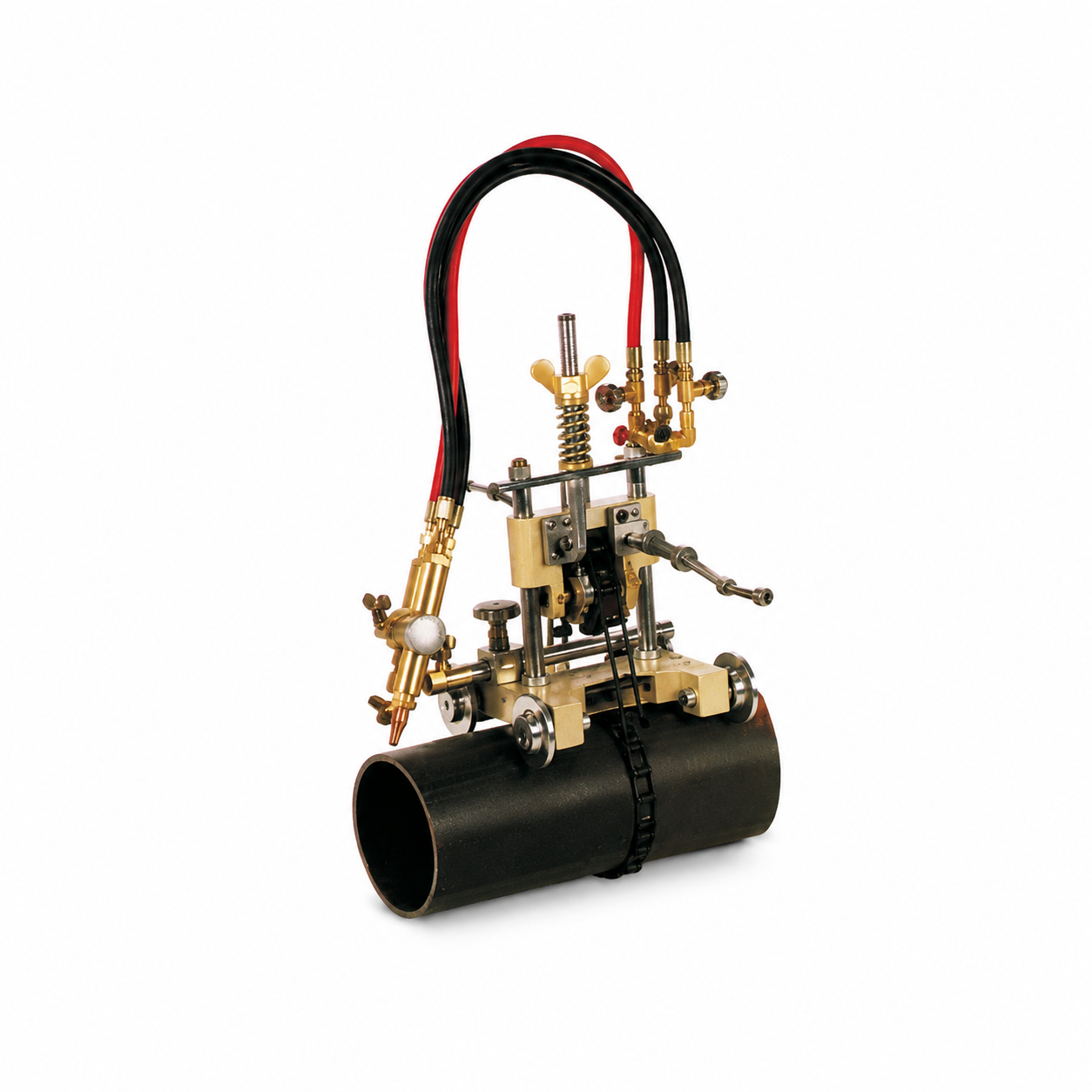

The series includes three models: CG2-11, CG2-11G and CG2-11D. CG2-11 is a magnetic pipe cutting machine. It uses magnetic wheels to adhere to the steel pipe surface and run steadily, making it suitable for pipe circumferential cutting and I/V/Y-type bevel processing. CG2-11G is a hand-operated pipe cutting machine. The cutting speed is manually controlled, making it suitable for field construction, temporary repair and sites with unstable power supply. CG2-11D is an automatic pipe cutting machine with smoother operation, suitable for ordinary carbon steel pipes and some stainless steel pipe cutting applications.
The CG2 series pipe gas cutting machine is lightweight, flexible and convenient for engineering sites. It works with oxygen, acetylene and other flame cutting gases, and is widely used in petroleum, chemical, metallurgy, steel structure, pipeline installation, equipment repair and field construction projects.
Suitable for pipe circumferential cutting, pipe end cutting, pipe bevel cutting and on-site repair cutting. Magnetic type, hand-operated type and automatic type are available for different working conditions. CG2-11 uses magnetic adsorption for stable cutting on steel pipe surfaces. CG2-11G is a hand-operated model, suitable for field construction and sites without stable power supply. CG2-11D is an automatic pipe cutting machine for more stable pipe cutting, and can also be used for stainless steel pipe cutting. Supports I-type, V-type 45° and Y-type pipe bevel cutting. Lightweight aluminum alloy body, portable and suitable for on-site movement. Cutting speed and torch angle can be adjusted according to different pipe diameters and wall thicknesses. Suitable for petroleum, chemical, metallurgy, pipeline engineering, steel structure and equipment maintenance. Export voltage can be customized, including 110V, 240V and 380V.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | CG2 Series Pipe Gas Cutting Machine |
| Product Category | Pipe cutting machine / semi-automatic pipe gas cutting machine / magnetic pipe cutting machine / hand-operated pipe cutting machine / automatic pipe cutting machine |
| Workpiece Type | Carbon steel pipes, metal pipes, engineering pipelines, structural steel pipes and stainless steel pipes |
| Cutting Method | Oxygen-acetylene flame cutting / pipe circumferential cutting |
| Main Functions | Pipe cutting, pipe end cutting, bevel cutting and field repair cutting |
| Bevel Forms | I-type, V-type 45°, Y-type and other pipe end forms |
| Applicable Gas | Oxygen, acetylene and other flame cutting gases |
| Applicable Industries | Petroleum, chemical, metallurgy, steel structure, pipeline engineering, equipment repair and field construction |
| Custom Voltage | 110V, 240V, 380V and other export voltage options |
| CG2-11 | Order No. LH80010; magnetic pipe cutting machine; machine size 350×240×220mm; cutting pipe diameter >108mm; pipe wall thickness 5–50mm; cutting speed 50–750mm/min; weight about 20kg; suitable for magnetic steel pipe cutting and I/V/Y-type bevel processing |
| CG2-11G | Order No. LH80011; hand-operated pipe cutting machine; machine size 420×280×450mm; cutting pipe diameter >100mm; pipe wall thickness 6–50mm; manual cutting speed control; suitable for field construction, petroleum, chemical, metallurgy and steel structure pipe cutting |
| CG2-11D | Order No. LH80012; automatic pipe cutting machine; machine size 420×280×450mm; cutting pipe diameter >100mm; pipe wall thickness 5–50mm; suitable for automatic pipe cutting and stainless steel pipe cutting |
| Typical Applications | Pipe circumferential cutting, pipe end beveling, on-site pipe repair, steel pipe cutting, petrochemical pipeline construction and steel structure pipe processing |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
On-site pipe cutting in petroleum and chemical pipeline projects.
Pipe end cutting during steel pipe installation, repair and modification.
I-type, V-type and Y-type bevel preparation before pipe welding.
Flame cutting for field construction, equipment maintenance and pipeline emergency repair.
Steel pipe cutting in steel structure, metallurgy and industrial pipeline installation.
