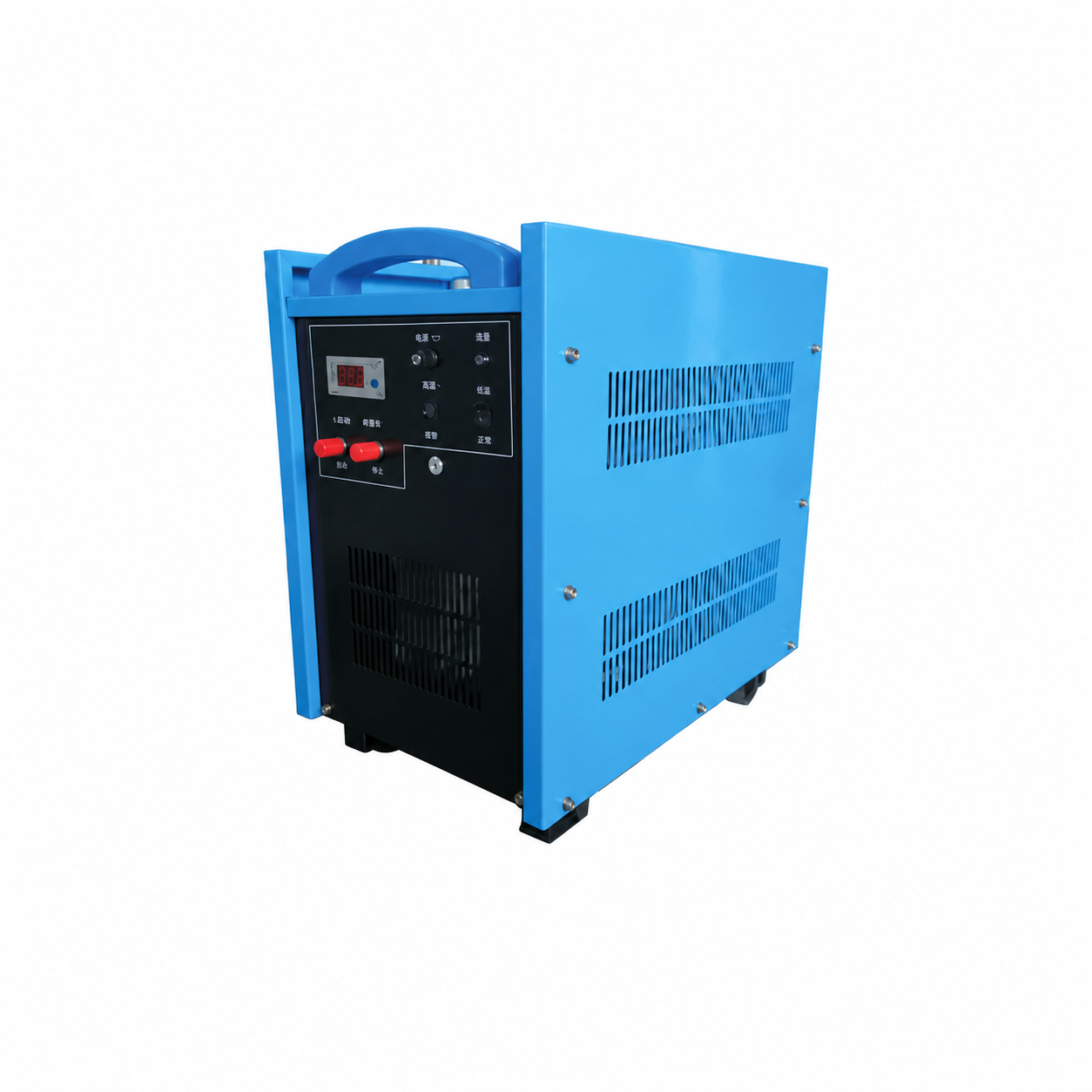

Cooling Circulation Water Tank
Cooling Circulation Water Tank
The cooling circulation water tank is an auxiliary cooling device for pipe welding equipment and other mechanical equipment. It is mainly used in outdoor construction sites, unstable water supply environments, or working conditions where equipment requires continuous cooling. During plastic pipe welding, butt fusion, electrofusion welding, cutting and other construction processes, some equipment needs stable cooling water to maintain operating temperature and reliability.
The unit adopts a water tank and circulation pump structure. Cooling water is continuously delivered from the tank to the equipment cooling system and then circulated for reuse. Compared with direct water supply, the circulation water tank reduces dependence on job-site water conditions and helps avoid water pump failures caused by frequent start-stop operation or long-term running. The visible water level also helps operators check water volume and refill easily.
The series includes CT-10 and LX-20 cooling circulation water tanks. Users can select the model according to water capacity, flow rate, remote water supply distance and cooling demand. It is suitable for plastic pipe butt fusion welding machines, electrofusion welding machines, arc cutting machines, pipe bending machines, mechanical cooling systems and other industrial equipment requiring cooling water circulation.
Suitable for outdoor construction, job sites without fixed water supply and applications requiring circulating cooling water. Provides cooling water for butt fusion welding machines, electrofusion welding machines, arc cutting machines and pipe bending machines. Circulation tank design helps avoid failures caused by frequent start-stop operation of ordinary water pumps. Can be used with various pipe welding equipment and mechanical cooling systems. Visible water level makes it easy to monitor water volume and refill in time. Stable water supply helps improve reliability during continuous operation. CT-10 is suitable for small equipment and regular cooling requirements. LX-20 offers larger capacity for equipment with higher cooling demand. Suitable for pipeline construction, plastic pipe welding, field installation, equipment repair and engineering construction.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | Cooling Circulation Water Tank |
| Product Category | Circulation water tank / cooling water tank / equipment cooling water circulation system / auxiliary cooling device for pipe welding equipment |
| Applicable Equipment | Plastic pipe butt fusion welding machines, electrofusion welding machines, arc cutting machines, pipe bending machines, mechanical cooling systems and other water-cooled equipment |
| Applicable Scenarios | Outdoor construction, sites without fixed water supply, unstable water supply sites, continuous cooling operation, equipment repair and engineering installation |
| Main Functions | Cooling water supply, circulating water supply, equipment water cooling and auxiliary field water supply |
| Product Features | Circulating water supply, visible water level, easy operation, reduced pump start-stop failure risk and mobile field use |
| CT-10 Product Positioning | Small cooling circulation water tank for regular equipment cooling and low-flow circulation water supply |
| LX-20 Product Positioning | Larger-capacity cooling circulation water tank for higher cooling demand and longer-distance water supply |
| LH80048 Input Voltage | 200V / 50Hz |
| LH80048 Rated Power | 150W |
| LH80048 Maximum Water Flow | 20L/min |
| LH80048 Rated Water Flow | 10L/min |
| LH80048 Maximum Water Capacity | 10L |
| LH80048 Maximum Remote Distance | 15L |
| LH80048 Rated Remote Distance | 10L |
| LH80048 Empty Machine Weight | 20kg |
| LH80049 Input Voltage | 200V / 50Hz |
| LH80049 Rated Power | 185W |
| LH80049 Maximum Water Flow | 25L/min |
| LH80049 Rated Water Flow | 10L/min |
| LH80049 Maximum Water Capacity | 20L |
| LH80049 Maximum Remote Distance | 20L |
| LH80049 Rated Remote Distance | 15L |
| LH80049 Empty Machine Weight | 30kg |
| LH80050 Input Voltage | 200V / 50Hz |
| LH80050 Rated Power | 185W + 185W |
| LH80050 Maximum Water Flow | 25L/min |
| LH80050 Rated Water Flow | 10L/min |
| LH80050 Maximum Water Capacity | 60L |
| LH80050 Maximum Remote Distance | 25L |
| LH80050 Rated Remote Distance | 20L |
| LH80050 Empty Machine Weight | 65kg |
| Typical Applications | Pipe welding equipment cooling, butt fusion machine circulating water supply, electrofusion welding machine cooling, cutting equipment cooling, auxiliary water supply for outdoor construction and mechanical equipment cooling systems |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Circulating cooling water supply for plastic pipe butt fusion welding machines.
Cooling support for electrofusion welding machines, arc cutting machines and pipe bending machines.
Auxiliary water supply for outdoor construction sites and temporary job sites without fixed water supply.
Cooling systems for industrial equipment, mechanical equipment and repair equipment.
Pipeline installation, municipal engineering, plastic pipe construction and equipment repair work.
